MDC0031: Mixergy iHP X Installation and Servicing Manual

Watch "Installing the Mixergy iHP X"

Sections

0:26 Heat pump head unit

1:55 Piping

6:40 Connections

7:29 Top Cover



Manual Contents

• Technical data
• What's in the box?
• Installer notes
• Schematic
• Hydraulic schematic
• Installation: General guidelines
• Installation: Head pump head unit
• Building regulation G3 discharge requirements
• Installation: Electrical
• Installation: Connectivity
• Current reader kit installation (option)

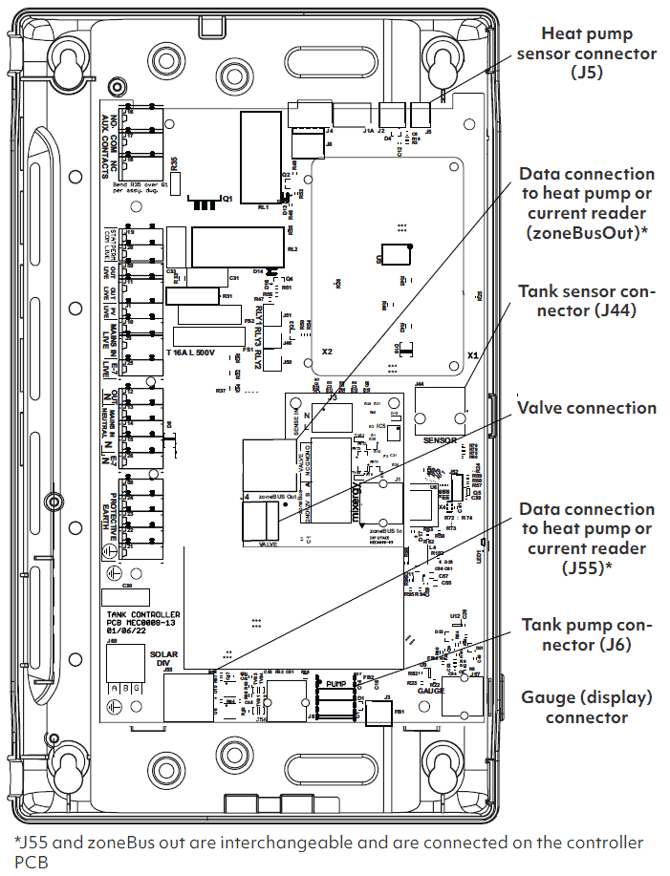

• Controller connector positions
• Commissioning
• Draining the cylinder
• Replacement parts
• Servicing and maintenance



Technical data

What's the box?

• iHP water cylinder
•  iHP heat pump unit
• Pre plumb flexi-hoses
• Spare blanking cap for condensate tray
• Combination (monobloc) valve
• Mixergy Gauge
• Tundish
• Expansion vessel including mounting bracket and 3/4” x 22mm
  adapters
• Powerline to Ethernet adapter
• Ethernet cable (1m)
• Mixergy iHP User Guide
• Installation and Servicing Instructions (this document)

Optional components

• Single phase energy measurement kit (MAS0071)

Installer Notes

The unit is supplied in two parts (the cylinder and the top mounting heat pump) to ease installation.

Both parts should be handled with care in order to avoid damage. They should be stored upright in a dry place.

The cylinder and heat pump should be carried upright where possible.

Assessments of risks for carrying both parts of the unit should
be conducted.

Use more than one person for carrying where appropriate.

• Never carry the cylinder using the components.
• If it is necessary to remove the heat pump from its shipping pallet then remove the cover and use the two lifting handles. Under no circumstances lift using the internal pipework.

Always follow the latest guidelines for lifting techniques to avoid injury or damage to the product.

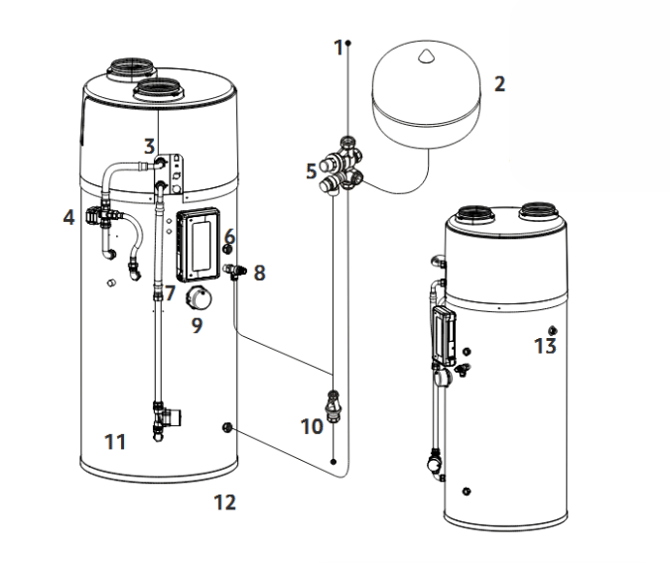

Schematic

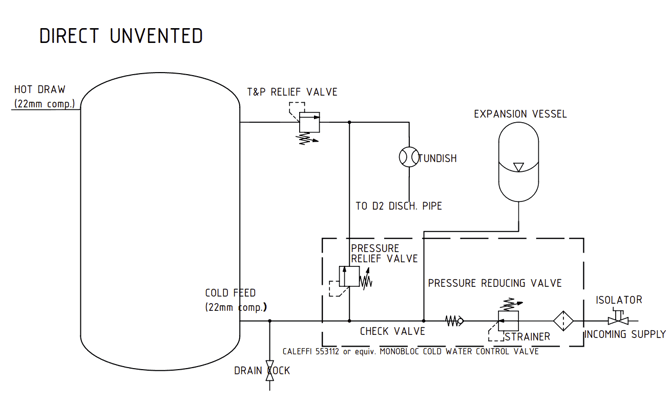

Hydraulic schematic

Direct unvented

Installation: General guidelines

The installation area should be able to cope with the weight of the iHP (approx. 320kg for a full 250L cylinder), incoming pipes and discharge pipe when full.

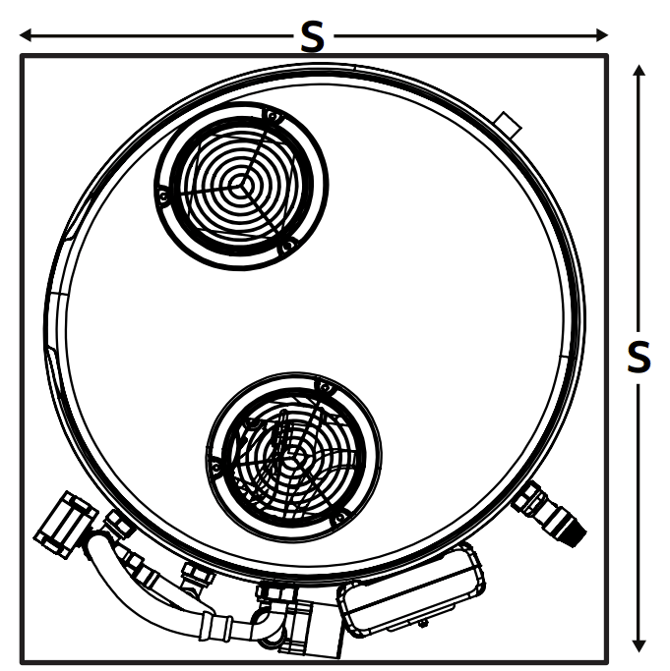

Positioning of the cylinder

The position of the cylinder should suit the installation; all connections should be to the front for ease of access.

Unvented installations

Installers should ensure incoming mains pressure is less than 10 bar and at-least 1 bar with a minimum flow rate of 10 L/min. Local authority approval for installation of unvented systems must be granted.

Use of flux

Excessive use of flux can damage the unit and especially the valves and expansion vessel (if supplied). Avoid over-use and ensure the system is fully flushed of any debris or flux after connection.

Pipework and cold water control group

The unit should be connected using 22mm pipe to ensure adequate flow rate.

The unit is supplied with a combination valve with a set pressure of 3 bar.

An isolation valve (not supplied) should be fitted before the combination valve.

Under no circumstances should the isolating valve be fitted between the expansion vessel and the storage cylinder.

Fitting a drain valve

A drain valve should be fitted to the lowest part of the unit, The drain valve must be fitted to allow at least 80% of the cylinder’s total capacity to be drained.

Positioning the tundish

The tundish, which shows visible discharge from the relief valves, is to be in a prominent, visible and safe position away from any electrical devices. See Building Regulation G3 Discharge Requirements.

Checking the pump and T&P relief valve

The temperature and pressure relief valve is set at 7 bar and 90°C. The pump and T&P valve seals should be checked as part of commissioning.

Fitting the expansion vessel

The expansion vessel should be charged at 3.0 bar.

The vessel should be mounted securely to the wall or sufficient support with the fixing kit supplied.

The connection should be made between the vessel and combination valve using the included 3/4” x 22mm compression adapter.

Installation: Heat Pump Head Unit

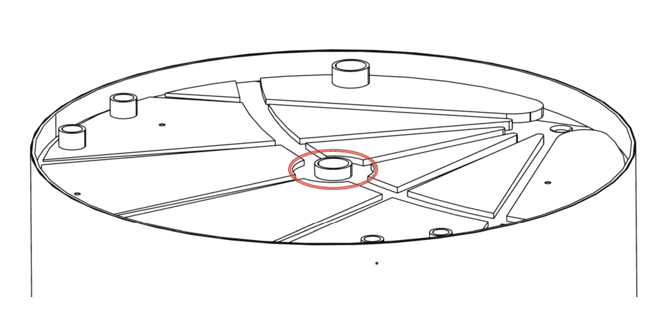

Check condensate sealing cap is fitted

The central hole in the condensate tray must be fitted with the sealing cap to prevent water ingress to the cylinder insulation. Before fitting the heat pump head unit check that this is in place.

If the cap is missing a spare is included in the installer kit. This must be fitted before mounting the head unit.



Assembling the head unit onto the cylinder

The head unit and cylinder are delivered separately to simplify installation.

Once the cylinder is in position the head unit can be lifted onto the top of the cylinder ensuring that the hydraulic connections line up with the head unit feed assembly and that the threaded inserts in the condensate tray line up with the fixing holes.

Fix the head unit to the cylinder using the four M8x25 bolts and M8 washers provided.

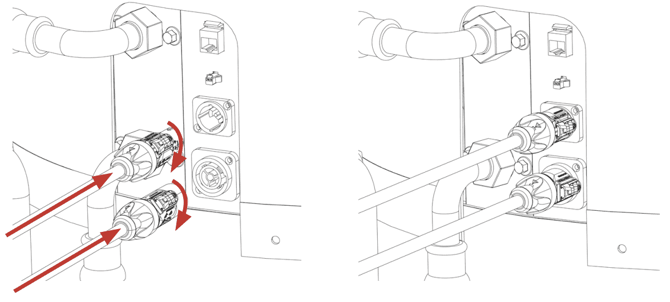

Heat pump supply and immersion connections

Connect the heat pump supply and immersion cables to the heat pump connector panel.

The two PowerCON connectors should be inserted then turned clockwise till they lock.

Heat pump data connections

Connect the flow temperature sensor (two pin plug) and the data (RJ45) cables from the controller to the head unit connector panel.

These two cables are normally supplied already connected to the controller. If not see controller connector positions for the connector locations.

Installation: Heat Pump Head Unit Pre Plumb Kit

Fit pipe clips

Fit two 22mm brass pipe clips (supplied) to the cylinder using No.8 x 25mm self drilling screws (supplied) and 15mm nylon spacers (supplied). There are pre drilled holes in the cylinder. One (1) is just below the 3 way valve on the Full Circulation Return Assembly (2). The other is just below the top of the Head Unit Feed assembly - see next page for drawing.

Connect the Full Circulation Return Assembly

Connect the assembly to the 22mm compression gland on the cylinder as shown opposite. Secure the unit using the upper of the two pipe clips.

Connect the top port of the 3 way valve to the upper port of the head unit using the supplied 350mm flexi hose (3). Fit 3/4” fibre washers (supplied) when assembling the face seals.



Connect the Top Up Return Assembly

Connect the assembly (4) to the 22mm compression gland on the cylinder as shown opposite. Ensure the pipe is vertical when tightening the gland.

Connect the horizontal port on the 3-Way Valve to the Top Up Return assembly using the supplied 243mm flexi hose (5).

Fit 3/4” fibre washers (supplied) when assembling the face seals.

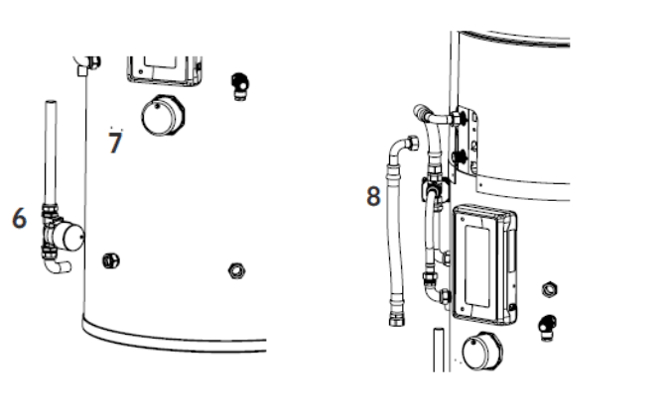

Fit Head Unit Feed Assembly

Connect the bottom of the Head Unit Feed Assembly (6) to the 22mm compression fitting near the base of the cylinder as shown opposite.

Secure the upper part of the assembly to the cylinder using the lower of the two pipe clips (7).

Connect the remaining flexi hose (8) to the lower port of the head unit then connect the other end to the 22mm pipe at the top of the head unit feed assembly using the integral compression gland.

Note that the face seal must be connected first to ensure proper alignment.

Fit a 3/4” fibre washer (supplied) when assembling the face seal.

Do not attach the top cover until commissioning has taken place. Before use, the system will need bleeding and the bleed valve is inside the top cover.

For more information, see the Commissioning section.

Installation: Pre Plumb Insulation

Valve Electrical Connection

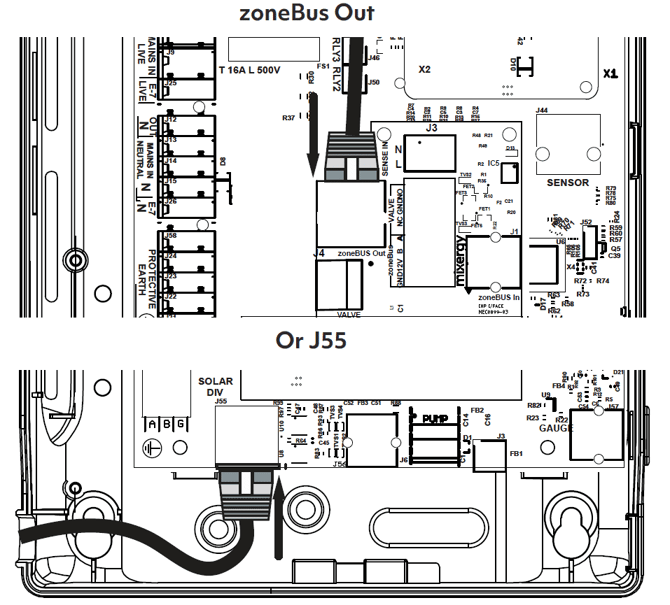

Connect the valve actuator to the controller by connecting the actuator cable to the corresponding cable from the controller. This cable is normally supplied already connected to the controller. If not see Controller connector positions for the connector location.

Pre-plumb pipework insulation

The external pre-plumb pipework, highlighted in red, should be insulated using class O insulation (not included).

The recommended thickness for class O insulation is 25mm for the best performance from your Mixergy iHP.

Installation: Heat Pump Head Cover

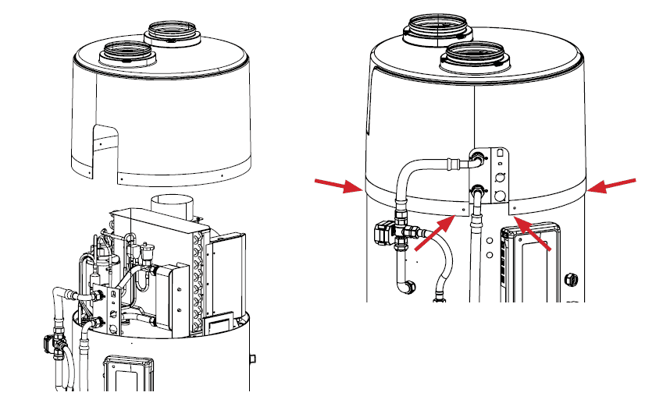

Installing the top cover

The top cover should be fitted over the head unit with the side cut-out aligned with the connector panel. The top cover is secured with four self drilling screws (included). The screws do not require pilot holes.

The locations for the screws is indicated below by the red arrows.

Do not attach the top cover until the system has been bled. For more information, see Commissioning.

Head Unit Sealing

To ensure minimal undesired exchange of air between the iHP and the installation location, the iHP has been fitted with a foam sealing kit. This sealing kit is designed to fill any gaps between the top cover, condensate tray and head unit.

When installing the head unit onto the condensate tray, there is a strip of foam already applied to the condensate tray. This foam strip will sit beneath the connector panel once the head unit is installed. The connector panel should compress the foam slightly, ensuring an air tight seal.

Inset from the bottom edge of the top cover, there is a foam strip that runs around the inside perimeter. There is also additional thickess of insulating foam around the mouse hole for the connector panel. When installing the top cover, the mouse hole should be aligned such that the surrounding foam is in contact with the sides and top of the connector panel.

The top cover can then be pushed downwards, and secured in place with the screws described above.

Whilst installing the top cover, attention should be paid to the seal between the fan and the top cover. The fan has a foam sealing ring on the outlet, and this sealing ring should make contact the full way around once the top cover is installed.

Installation: Heat Pump Ducting Design

Ducting Design

The iHP cylinder uses 150mm or 160mm i.d. ducting for the exhaust and intake of air to the heat pump head unit. Ducting adaptors (supplied) should be fitted if using 160mm ducting.

Mixergy recommends the use of Ubbink Aerfoam for round duct iHP installations. If a mixture of round and flat ducting is required Mixergy recommends Verplas Rapid Self-Seal Thermal ducting.

• Minimise the number of bends in the ducting for best efficiency.
• Intake and exhaust ports should be separated. A 1.5m separation is recommended if practical.
• If the ports have to be closer than recommended try to place the intake port above the exhaust port to minimise cross flow from exhaust to intake.
• Vertical dusting through the roof directly above the head unit, will minimise bends. A 45 degree bend can be used to either route one duct to the opposite side of the roof or separate the external terminations.
• Ducting must be insulated to stop condensation forming on the exterior of the ducts.
• Avoid flexible ducting.
• Avoid high-loss louvres for side exits. If louvres are required ensure they are appropriately oversized to minimise losses. The use of bird-beak style side exits is recommended.
• If there are any air handling ports on an opposite wall 2m or closer (iHP, MVHR etc.), placement of the intake/exhaust ports should be no closer than 3.5m.
• The recommended minimum distance from an opposite wall is 1m.
• The exhaust port should be no closer than 1m from any protruding wall or window or other opening. The same clearance should be given for open eaves.
• If installing for loft intake, ensure the intake is at least 500mm from any surface, especially any surface using Rockwool style insulation, as this will cause serious dust build up within the head unit.

Ducting Design Continued

When crafting the ducting installation, it is important to allow for future servicing of the iHP head unit. As previously mentioned on page 8, 350mm should be left above above the iHP to allow the top cover to be installed/removed. This 350mm of clearance also applies to the ducting.

The inlet and outlet ducting imedietely above the iHP should be easy to detach and remove, giving the 350mm of clearance required for servicing.

Installation: Heat Pump Head Unit Ducting Design

Installation: Heat Pump Head Unit Ducting

Mixergy recommends the use of Ubbink Aerfoam for all iHP ducting installations. The design of this ducting means the losses created by typical PVC elbows are reduced by approximately 30%. This helps ensure the best performance from the iHP cylinder.

Below is a table of typical iHP ducting installations using generic PVC 150mm ducting and indicative COP figures to show the effect of different ducting designs. These COP figures are not a guarantee of performance, as there are many real world variables that will affect the achieved COP.

Mixergy recommends a maximum duct length of 20 metres. All figures shown are for total combined duct length on the inlet and outlet of the iHP.

In the example shown to the right, if the length sum of S₁, S₂, S₃ and S₄ is 10 metres, and there are two 90° elbows, E₁ and E₂, the resulting approximate COP would be 2.74.

Instantaneous COP was measured over a full reheat (full circulation mode) of the cylinder, from 10°C to 55°C, with 14°C inlet air.

If you need more in-depth information regarding fan and COP data for your installation, please contact Mixergy.

Building Regulation G3 Discharge Requirements

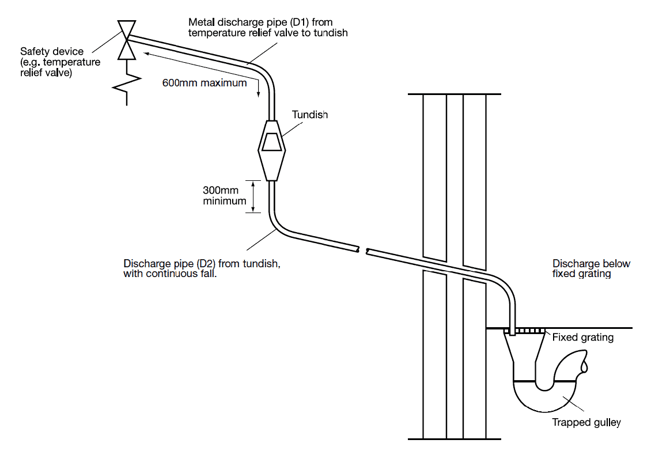

Discharge pipes from safety devices

As part of the requirements of Building Regulation G3 this product is factory fitted with a T&P valve, which complies with BS EN 1490. Any discharge from a water heater system should be conveyed to where it is visible but will not cause danger to persons in or about the building. The tundish and the discharge pipes should be fitted in accordance with the requirements of Building Regulation approved document G3, (England and Wales), Part P of Northern Ireland and Standard 4.9 of Scotland.

Tundish

The tundish should be vertical, located in the same space as the unvented hot water storage system and be fitted as close as possible to, and lower than, the safety device, with no more than 600mm of pipe between the valve outlet and the tundish. Note: to comply with the Water Supply (Water Fittings) Regulations, the tundish should incorporate a suitable air gap.

Discharge Pipe D2

The discharge pipe (D2) from the tundish should have a vertical section of pipe at least 300mm long below the tundish before any elbows or bends in the pipework. It should be installed with a continuous fall of at least 1 in 200.

The discharge pipe (D2) should be made of metal or other material that has been demonstrated to be capable of safely withstanding temperatures of the water discharged and is clearly and permanently marked to identify the product and performance standard (e.g. as specified in the relevant part of BS 7291-1:2006).

Mixergy strongly recommends the use of metal pipework only and Mixergy does not take responsibility for any damage caused from discharges.

The discharge pipe (D2) should be at least one pipe size larger than the nominal outlet size of the safety device unless its total equivalent hydraulic resistance exceeds that of a straight pipe 9m long, i.e. for discharge pipes between 9m and 18m the equivalent resistance length should be at least two sizes larger than the nominal outlet size of the safety device; between 18 and 27m at least 3 sizes larger, and so on; bends must be taken into account in calculating the flow resistance.

Discharge pipe D2

• Where a single common discharge pipe serves more than one system, it should be at least one pipe size larger than the largest individual discharge pipe (D2) to be connected.
• Any discharge should be visible at the tundish. In addition, where discharges from safety devices may not be apparent, e.g. in dwellings occupied by people with impaired vision or mobility, consideration should be given to the installation of a suitable safety device to warn when discharge takes place, e.g. electronically operated.
• The discharge pipe should not be connected to a soil discharge stack unless it can be demonstrated that the soil discharge stack is capable of safely withstanding the temperatures of the water discharged, in which case, it should contain a mechanical seal, not incorporating a water trap, which allows water into the branch pipe without allowing foul air from the drain to be ventilated through the tundish.
• If plastic pipes are used as branch pipes carrying discharge from a safety device, they should be either polybutylene (PB) or cross-linked polyethylene (PE-X) complying with national standards such as Class S of BS 7291-2:2006 or Class S of BS 7291-3:2000 respectively; and be continuously marked with a warning that no sanitary appliances should be connected to the pipe.
• Where pipes cannot be connected to the stack it may be possible to route a dedicated pipe alongside or in close proximity to the discharge stack.

Discharge pipework termination

Termination of discharge pipe

The discharge pipe (D2) from the tundish should terminate in a safe place where there is no risk to persons in the vicinity of the discharge.

Examples of acceptable discharge arrangements are:

• To a trapped gully with the end of the pipe below a fixed grating and above the water seal.
• Downward discharges at low level - i.e. up to 100mm above external surfaces such as car parks, hard standings, grassed areas etc. are acceptable providing that a wire cage or similar guard is positioned to prevent contact, whilst maintaining visibility.
• Discharges at high level - e.g. into a metal hopper and metal downpipe with the end of the discharge pipe clearly visible or onto a roof capable of withstanding high temperature discharges of water and 3 m from any plastic guttering system that would collect such discharges.

Termination of condensate hose

• The condensate drain is located to the right of the controller on the side of the cylinder. Approximately 2m of 20mm id flexible hosing is provided. This should be connected to a grey water drainpipe, D2 of the tundish pipe work or to a soil pipe.
• The head unit will discharge approximately 0.75L of water per hour under typical operating conditions.
• The hose should not run horizontally or create a U-bend.
• If discharging into a drain or soil pipe a U-bend should be used. The outlet of the U-bend must be below the inlet to avoid water backing up into the head unit.
• If discharging into D2 of the tundish pipe work, a swept tee should be used to prevent discharge traveling up the condensate drain hose and check that the outlet is suitable for continuous discharge.

Installation: Electrical

External wiring

Mixergy cylinders come supplied with cable included. Any extensions to the supplied cabling should match or exceed the current and voltage ratings of the cables to be extended.

Primary supply (13A, 230-240V~, 1.5mm² CSA)

The white 3-core (L,N,E) cable labelled ‘PRIMARY SUPPLY’ must be connected to the household’s main supply via a dedicated 16A MCB protected circuit with a 13A DP fused spur. This is the primary power supply for the control electronics and is used to power the heat pump (or immersion) when the cylinder is set to heat.

Timer control (VOLT-FREE, 10mA 80-240V~, 0.5mm² CSA)

The black 3-core (L,N,E) cable labelled Timer Control can be used to integrate the Mixergy cylinder with any existing timers or controllers eg economy 7 timer or Hive dual channel controller. This cable detects a 80-240VAC signal and instructs the cylinder to heat unless otherwise disabled in software.

Installation: electrical (PRIMARY SUPPLY)

Installation: Connectivity

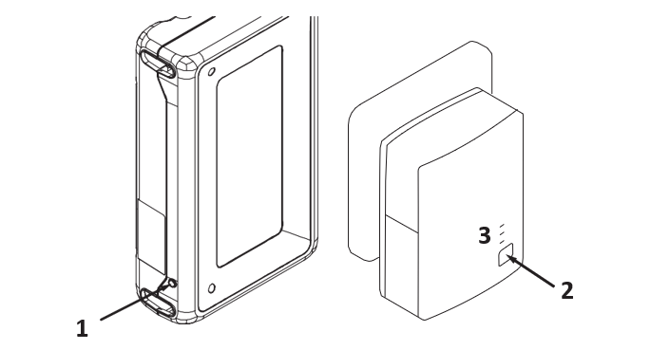

Installing the powerline adapter

The Mixergy cylinder requires internet connectivity to allow for full control of the system. Connection to the cylinder can be made using the provided Ethernet to powerline adapter or by hard-wired Ethernet.

• Plug the powerline adapter into a wall socket within 2m of the property’s internet router. Do not use an extension lead as this can cause connectivity issues.
• Connect the powerline adapter to the router using the included Ethernet cable.

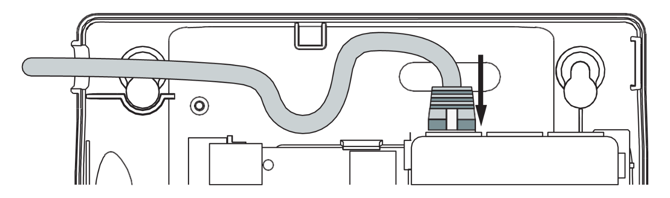

Wiring an Ethernet connection

If a hard-wired CAT5/CAT5e/CAT6 network connection is available close to the cylinder it should be connected as follows:

1. Unscrew and remove the cylinder controller’s cover and then disconnect the blue Ethernet cable as shown.

2. Replace the removed Ethernet cable with a suitable direct connection to the network (broadband router/switch).

Connecting the Display

Connect the Mixergy gauge to the RJ12 (phone) socket on the lower right corner of the controller.

The gauge is supplied with two magnetic strips. One is fixed to the rear of the gauge and will allow the gauge to be fitted to the cylinder.

If the customer would like the gauge to be mounted to a non-magnetic surface the second strip should be fixed to this using the adhesive film on the back of the strip.











Current reader kit installation (option)

Overview

If the property has solar PV panels there is an option to fit a current reader on the mains supply to the property. This measures energy import and export. If the energy export exceeds a threshold (typically 250-500W) the controller will switch on the heat pump to use the excess energy to heat water.

A standard Cat5e or Cat6 cable is used to connect the controller to the current reader and there is also a wireless option.

There are two options depending on the type of supply the property has:

• The MAS0071 kit is intended for properties with a single-phase supply.
• If it is impractical to install a cable between the controller and the mains supply then a wireless unit is available.
• The part number for this is MAS0182-WL. The installation instructions for this unit are supplied as part of the kit.

Included parts

MAS0071 single current clamp kit

• CT interface (MAS0061)
• Current clamp (MEC0029) x 1
• Mounting hardware (VHB pad, screws x 2, wall plugs x 2)
• 1 m Ethernet cable x 1, 2m Ethernet cable x1

Installing the current reader - single version

Positioning the CT interface

The CT interface must be placed within 300mm of the household’s incoming mains supply cabling.

The CT interface should be fixed to the wall with the two provided screws using the case mounting holes as pictured below.

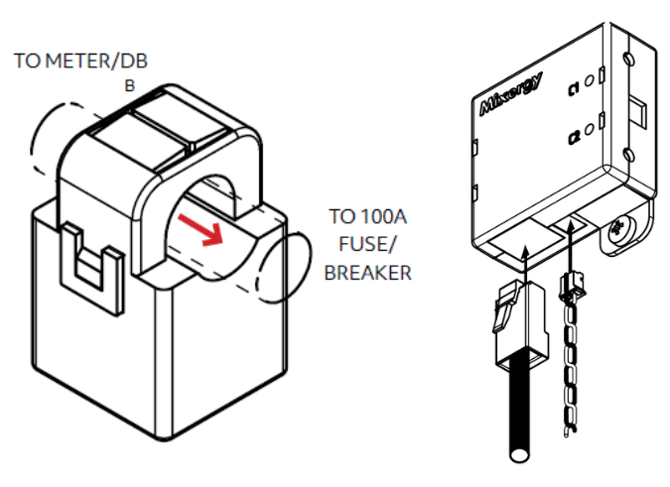

Installation of the current clamps

The current clamp should be attached around the neutral (blue/black) cable on the incoming mains supply with the arrow pointing towards the incoming supply 80/100A main fuse or breaker.

If this is impractical it can be fitted round the live (brown/red) cable with the arrow pointing away from the incoming supply.

The current clamp must then be plugged into the single CT interface as pictured.



Connecting to the controller - single phase

Connection of the CT interface to the controller

The CT interface should be connected to the controller using pin to pin cat5e or cat6 Ethernet cables.Ensure that the cable used contains all 4 twisted pairs (8 conductors).

NOTE: While Ethernet cable is used for this connection, the communication protocols used are not compatible with standard networking hardware and the connection between the controller and clamp must be direct (i.e. no network switches or routing equipment is to be fitted in between)

Remove the controller lid and connect one end of the cable to J55 at the lower left corner of the controller circuit board or to the zoneBus Out connector on the mezzanine board. The other connector is used to control the heat pump and should already be connected.

Connect the other end to the RJ45 connector on the single CT interface as shown on the previous page.



Controller connector positions

Commissioning

Fill and bleed the system

1. Ensure the drain on the cold feed pipework is closed.
2. Before turning on the mains supply to the cylinder a hot water tap should be opened, preferably on the same floor or the floor below where the cylinder is located.
3. Check the pre-charge in the expansion vessel and ensure it is at least 3 bar. Note actual pressure on label on expansion vessel.
4. Turn on the supply and fill until water appears at the hot tap. Continue to flush the system until all debris has been removed.
5. Close the hot water tap.
6. Check all joints for leaks, even those not having been altered especially when replacing a vented water heater.
7. Ensure water flow is obtained at each hot water outlet expelling any air within the pipework. Once finished, close all hot water outlets.

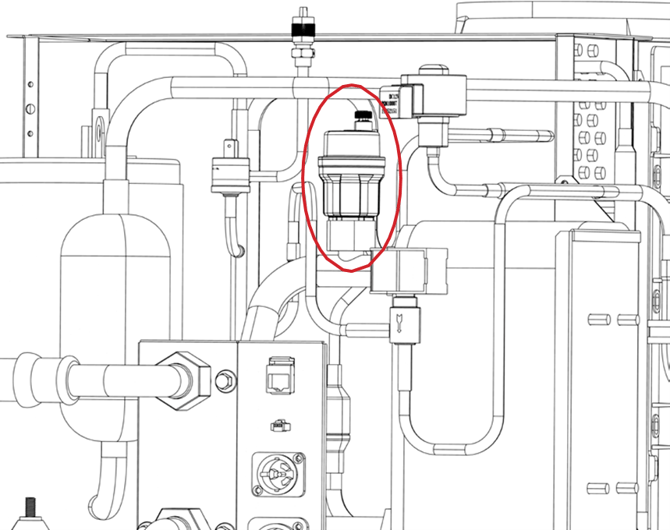

8. Locate the auto air vent on the head unit (highlighted in red below) and loosen the cap. Air will be released from the top of the system. The cap can be left loose on the air vent. Do not remove the cap.


9. Open temperature and pressure relief valve to ensure proper discharge and check after closing that valve is not dripping.
10. Open expansion relief valve to ensure proper discharge and check after closing that valve is not dripping.
11. Check that the discharge pipework is free from debris and is transporting the water away to waste effectively.
12. Switch on the supply to the Mixergy iHP cylinder and check for correct operation.
13. Connect the cylinder to the internet by pairing to the included powerline adapter. See Installation: connectivity and Commissioning more information. The Network LED will light when the system is connected to the Mixergy server.

On power up the tank controller runs a series of tests and displays the results on the gauge.

Note that this will only run when the main controller has booted up which takes approximately 50 seconds.

Check that no LEDs light red and that the bottom seven LEDs light green

The picture to the left shows the meaning of each LED.

Note that if a voltage is applied to the Remote Control input the Remote Control LED will light green rather than blue.

Check that all buttons (boost UP, boost DOWN and power) work correctly.

For further information on gauge operation please reference the Mixergy iHP User Guide.











Changing heating mode

All Mixergy systems leave the factory in full circulation mode. If you wish to permanently enable top-up mode, this can be achieved in a number of ways:

1. If the system is connected to the internet the heating mode can be changed by the installer using the Mixergy Enterprise Installer app or by the user via the standard Mixergy app.
2. Alternatively the heating mode can be set by holding the boost UP and boost DOWN buttons simultaneously. The display will light white to acknowledge that you have entered this mode. To change the heat source, let go of the buttons once any of the display LEDs has changed to the required colour (BLUE for Full Circulation, RED for top-up). The display will then flash either blue or red to indicate the new default heat source. Switch the cylinder off and on (power cycle) for the change to take effect.

Status LED error codes

If the system is not behaving as expected, please check the status LED on the side of the controller enclosure and contact your local Mixergy Technical Support team:
